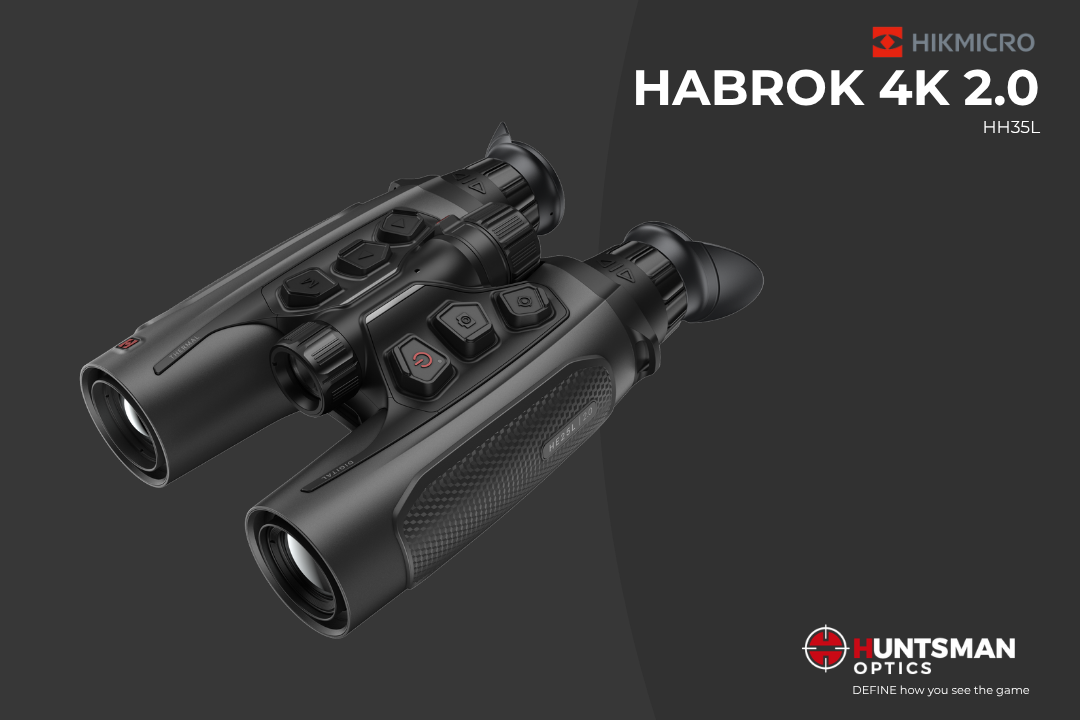

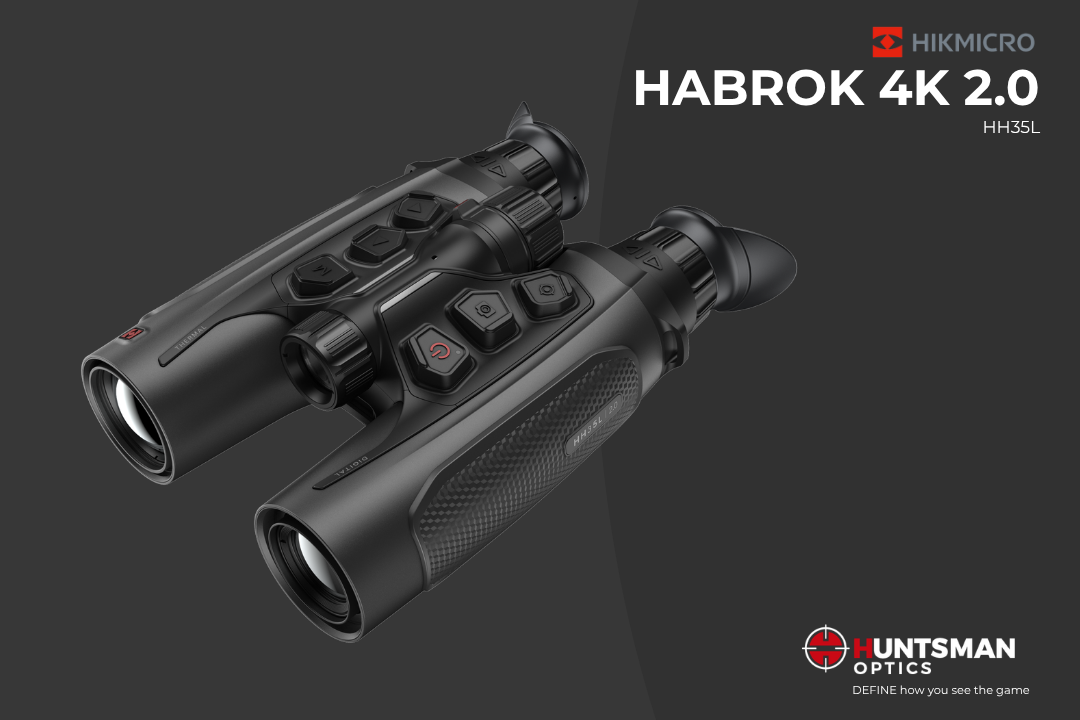

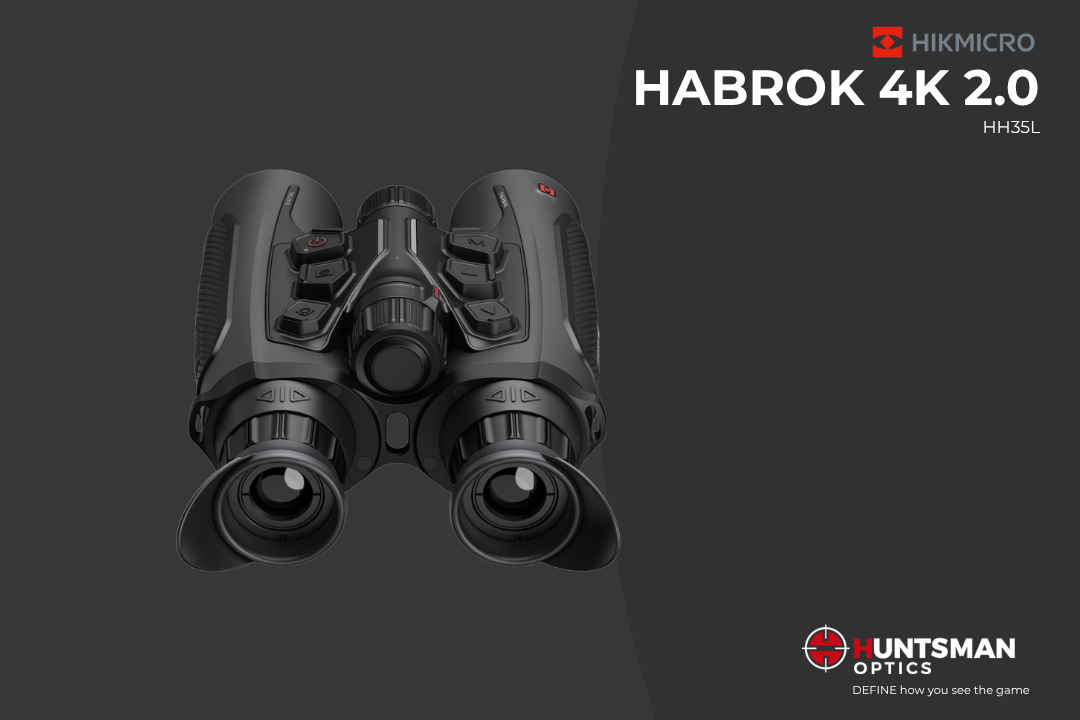

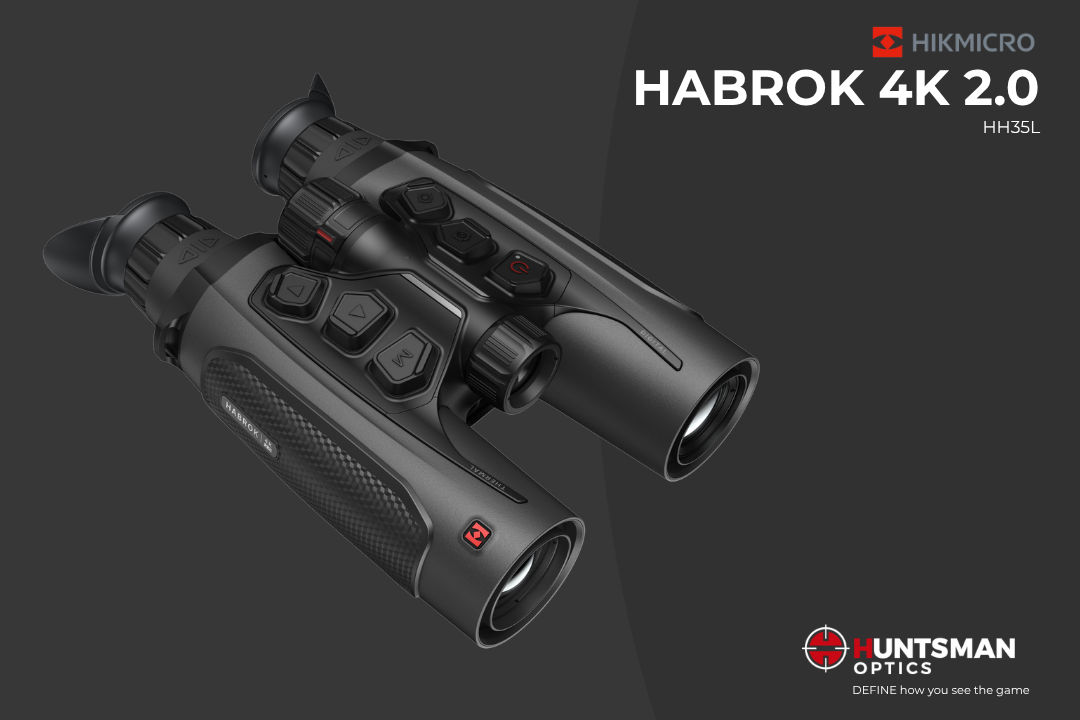

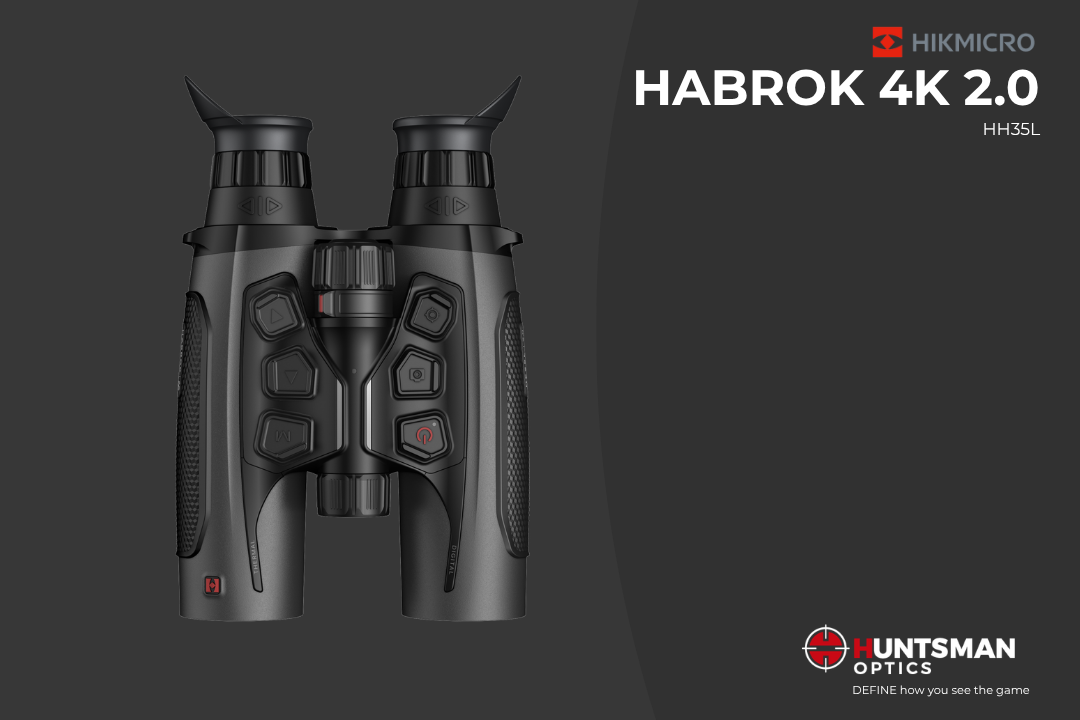

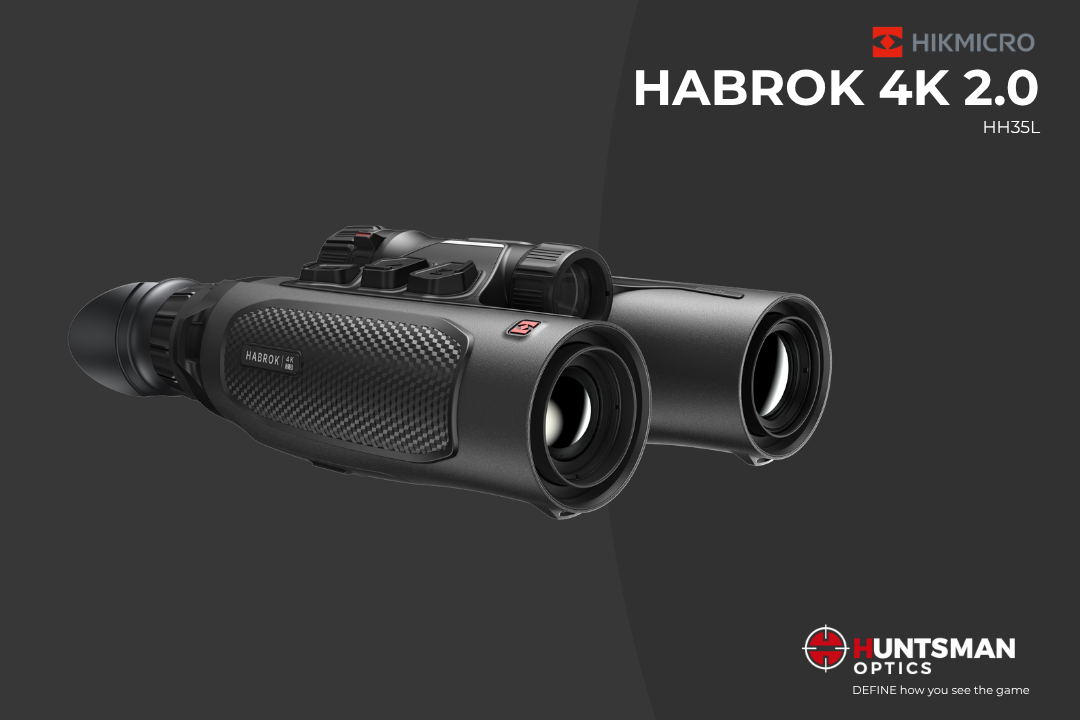

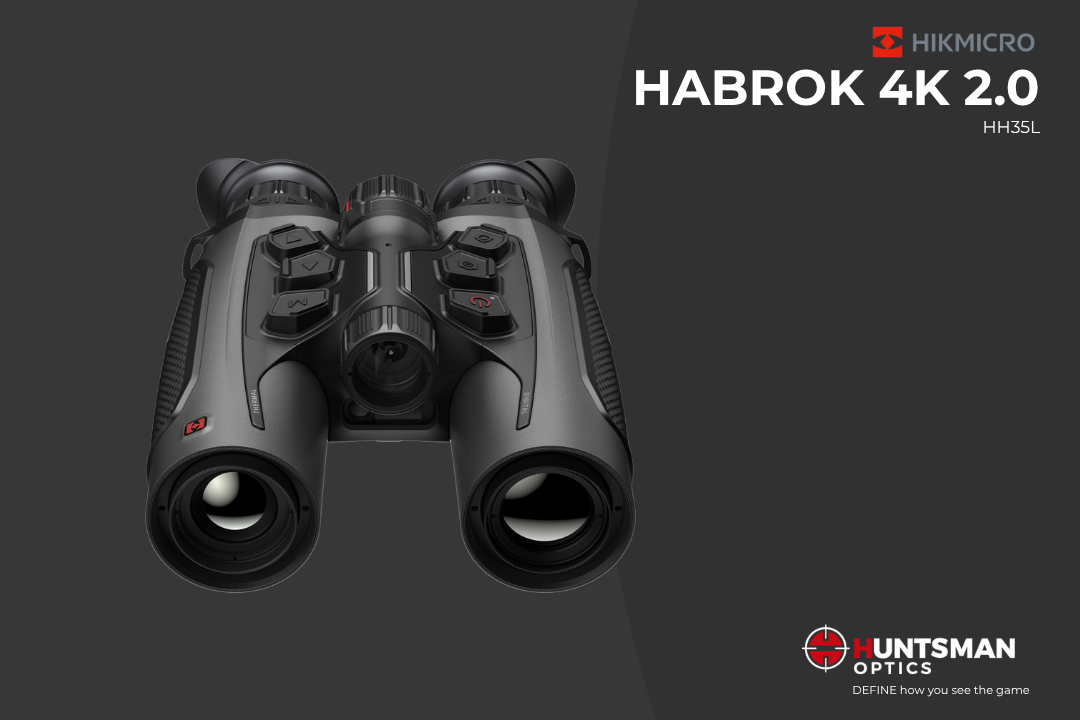

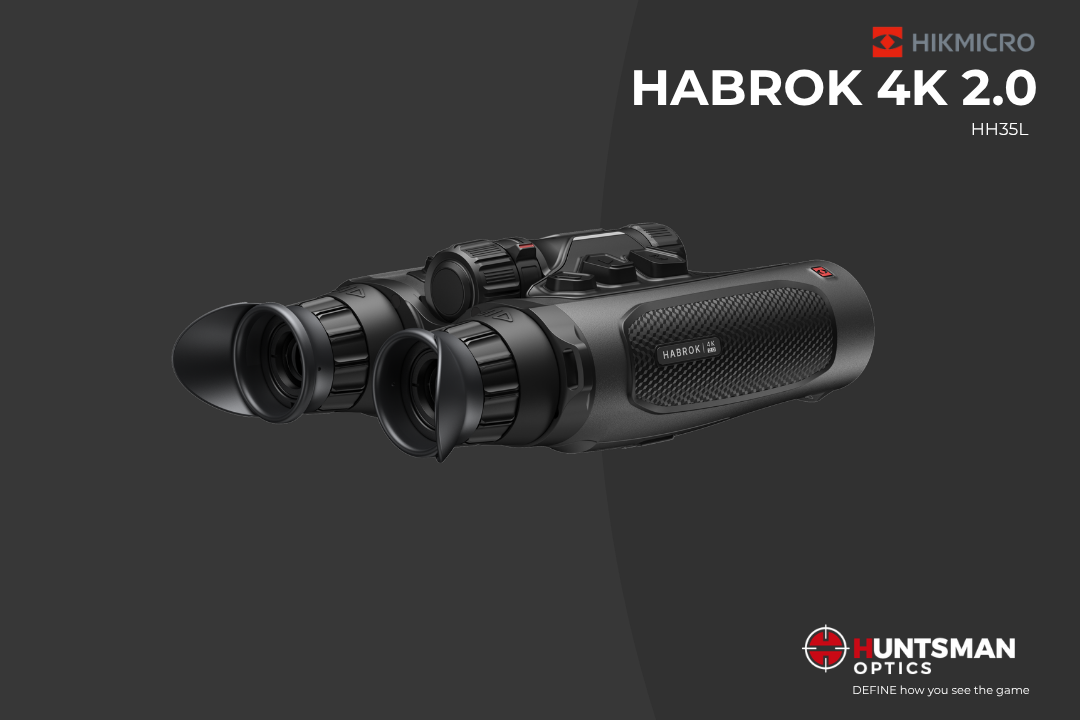

HH35L 2.0 4K
Multi-Spectrum Binocular
The HIKMICRO HABROK 4K 2.0 HH35L 2.0 is a multi-mode binocular combining thermal and digital imaging capabilities. It features a 384 × 288 resolution 12μm thermal detector with NETD less than 15mK and a 35mm F1.0 lens, providing a thermal detection range of up to 1800m.
The optical module features a 3840 × 2160 4K CMOS detector with a 60mm F2.2 digital lens. The system provides 5.5×–22.0× magnification and supports 2×, 3×, 4× and 5× zooming values.
The HABROK HH35L 2.0 features the HIKMICRO Shutterless Image System (HSIS), Smart IR, replaceable 940nm and 850nm IR illuminators, and a built-in 1000m laser rangefinder. The night viewing range reaches up to 400m.
The binocular includes a 0.49-inch 1920 × 1080 OLED display, built-in 64GB EMMC storage, video recording, snapshot capture, audio recording, hotspot, Hot Track, PIP, digital magnetic compass, and local album. A replaceable rechargeable Li-ion battery provides ≥6.5 hours of operating time.
Huntsman range of HABROK Multi-Spectrum Binocular offers :
- 384 × 288 VOx Uncooled Thermal Detector
- Pixel Interval: 12μm
- Frame Rate: 50Hz
- NETD: Less than 15mK
- 35mm F1.0 Thermal Lens
- Thermal Detection Range: 1800m
- Thermal Magnification: 4.0×–20.0×
- 3840 × 2160 4K CMOS Detector
- 60mm F2.2 Digital Lens
- Digital Magnification: 5.5×–22.0×
- Night Viewing Range: 400m
- HIKMICRO Shutterless Image System (HSIS)
- Zoom Pro
- Electric Image Stabilization
- Smart IR
- Replaceable 940nm & 850nm IR Illuminators
- 1000m Laser Rangefinder
- 0.49-inch 1920 × 1080 OLED Display
- Thermal & Optical Colour Palettes
- Capture Photos & Store on Device
- Video Recording
- Audio Recording
- Picture-in-Picture (PIP)
- Wi-Fi Hotspot
- Hot Track
- Digital Magnetic Compass
- Local Album
- Built-in 64GB EMMC Storage
- Replaceable Rechargeable Li-ion Battery
- Battery Runtime: ≥6.5 Hours
- Type-C External Power Supply
- IP67 Protection
- Working Temperature: -30°C to +55°C
- Laser Safety Class: Class 1
- Laser Wavelength: 905nm
- Laser Measurement Accuracy: ±1m
- Weight: 900g without batteries
- Dimensions: 143.1 × 74.8 × 223.3mm
